Application: indoor
Brand Name: NONE
Camera: 3mp
Customized support: Online technical support, Customized logo, OEM, ODM
Data Storage Options: NVR
Function: built-in mic, NIGHT VISION
High-concerned chemical: None
IR Range: 20m
Image Sensor: 1/2.8" CMOS Sensor
Led light board: dual light.4pc warm light+4pc IR leds
Lens: 2.8mm lens
Material: Metal
Model Number: VB-8339 NPD
Network: Ip
Origin: Mainland China
Place of Origin: Guangdong, China
Recommend Age: 14+
Sensor: CMOS
Special Features: Human Motion Tracking, NIGHT VISION, motion detection, Waterproof / We

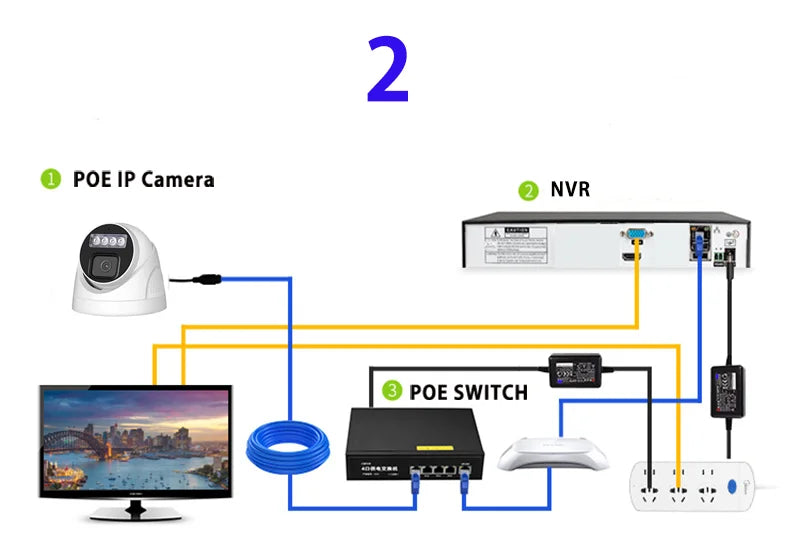

Storage: For poe nvr

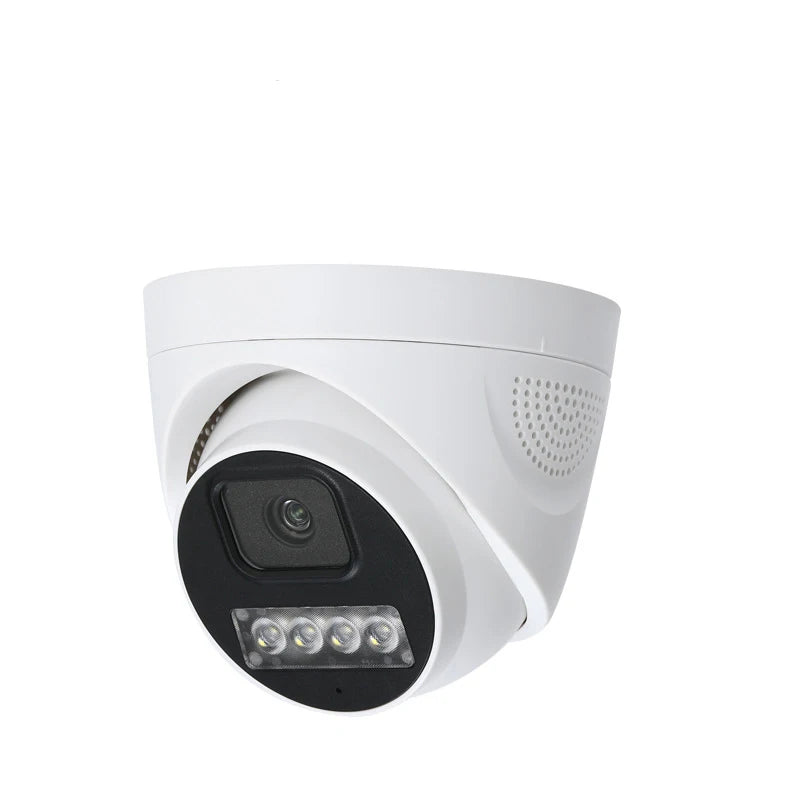

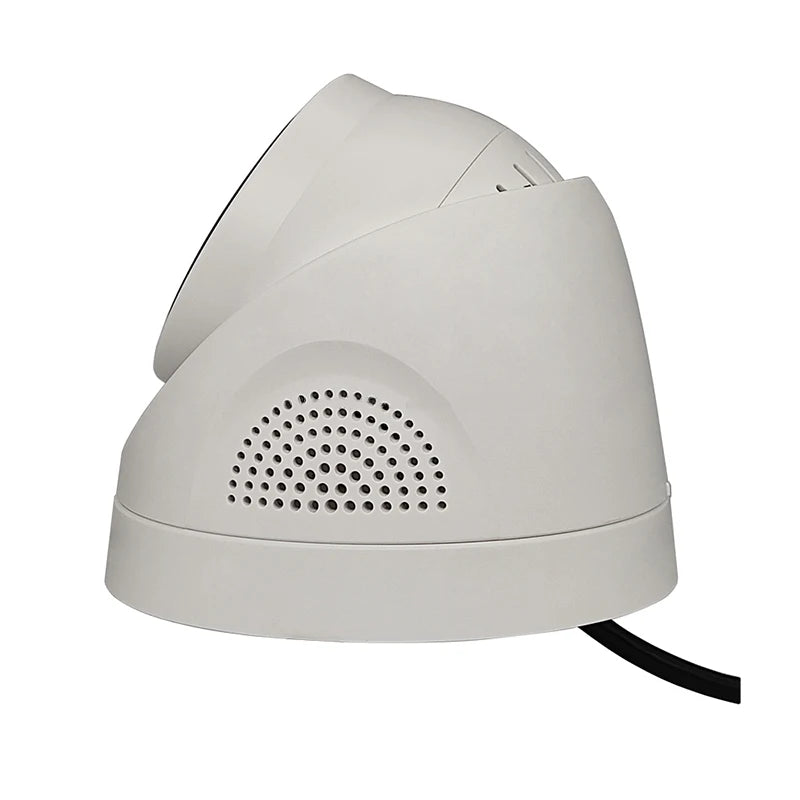

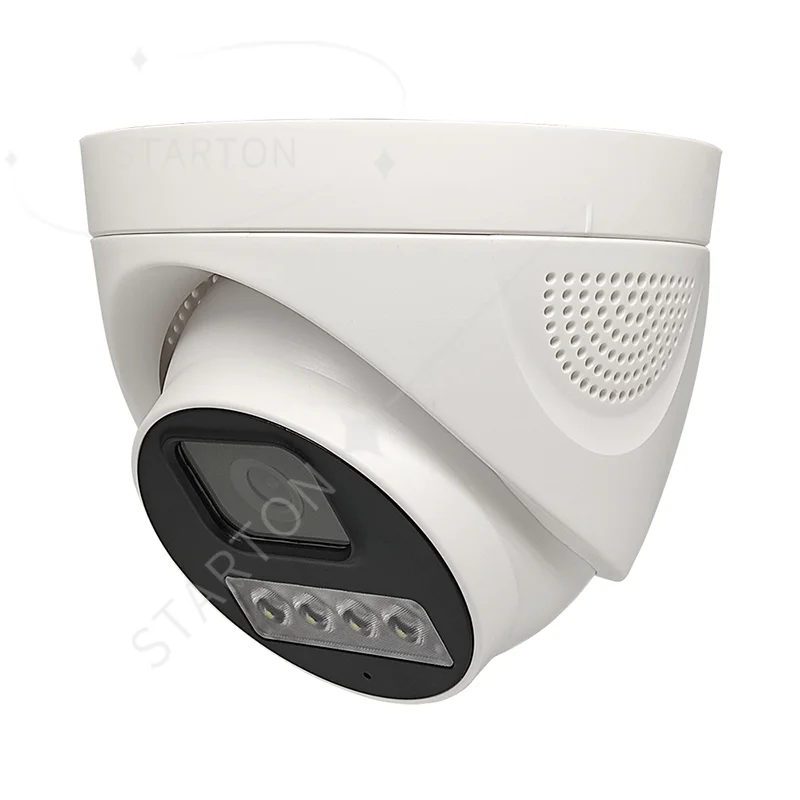

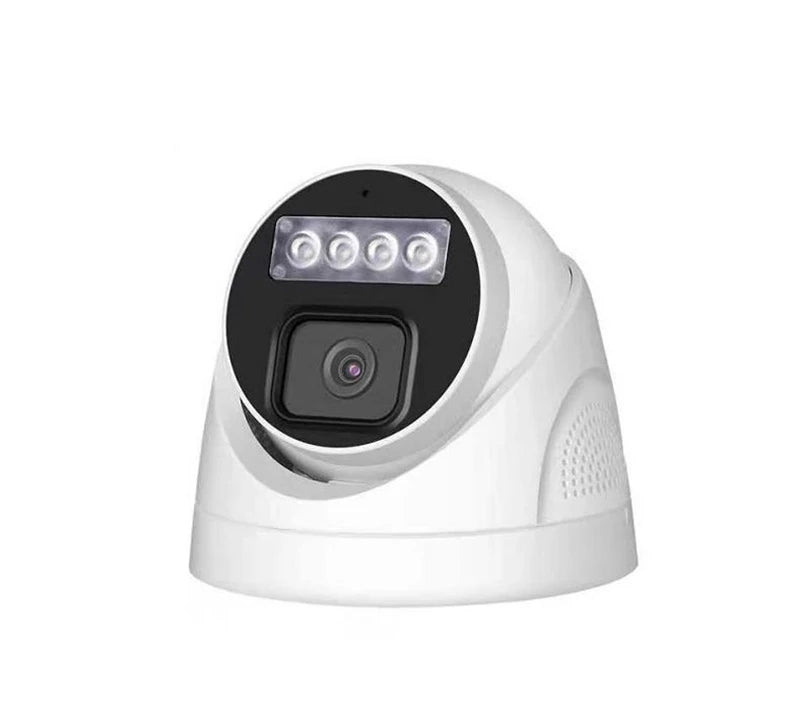

Style: dome camera
Type: Dome camera
Video Compression Format: H.265
Video Resolution: 3.0 Megapixel
Warranty: 1 Year
ip camera: hd night vision video camera
|
Camera
|
||||
|
Chipset
|
1/2.8“ sony 307
|
|||
|
Sensor
|
1/2.8", 3MP low illumination CMOS sensor
|
|||
|
Lens
|
Support fixed lens and varifocal lens
|
|||
|
D&N
|
ICR switch, auto/color/B&W/CDS trigger/ customized time
|
|||
|
D-WDR
|
WDR (Off/Low/Middle/High)
|
|||
|
IR Led Control
|
IR/warm/dual light, auto/manual/off, support 0-100 brightness adjust
|
|||
|
3D DNR
|
Off/Low/Middle/High/Higher
|
|||
|
Defog
|
Off/Low/Middle/High
|
|||
|
Mirror
|
Off/horizontal mirror/vertical mirror/180° flip
|
|||
|
Image Setting
|
Brightness,contrast,sharpness,saturation,chroma
|
|||
|
Humanoid Detection
|
||||
|
Detection Quantity
|
≤5 person
|
|||
|
Humanoid Size
|
Humanoid pixel≥40X40
|
|||
|
Detection Ratio
|
≥99%锛坢eet above requirement锛�
|
|||
|
Capture Corresponding speed
|
≤1s
|
|||
|
Max Detection Frame
|
5fps/s
|
|||
|
Fault Detection Ratio
|
≤2%
|
|||
|
Detect Part
|
People with any posture including half body,head,hand shoulder
|
|||
|
Track People
|
Support
|
|||
|
Detection Mode
|
Support static and dynamic humanoid detection
|
|||
|
Detection Method
|
Image detection during day or night time with lights or IR Leds
|
|||
|
Detection Area
|
Appointed area, default full-screen
|
|||
|
Upload Method
|
Upload it under private protocol
|
|||
|
Trigger Method
|
Video trigger
|
|||
|
Audio & Video Encoding
|
||||
|
Standard
|
H.265/H.264
|
|||
|
Encoding Feature
|

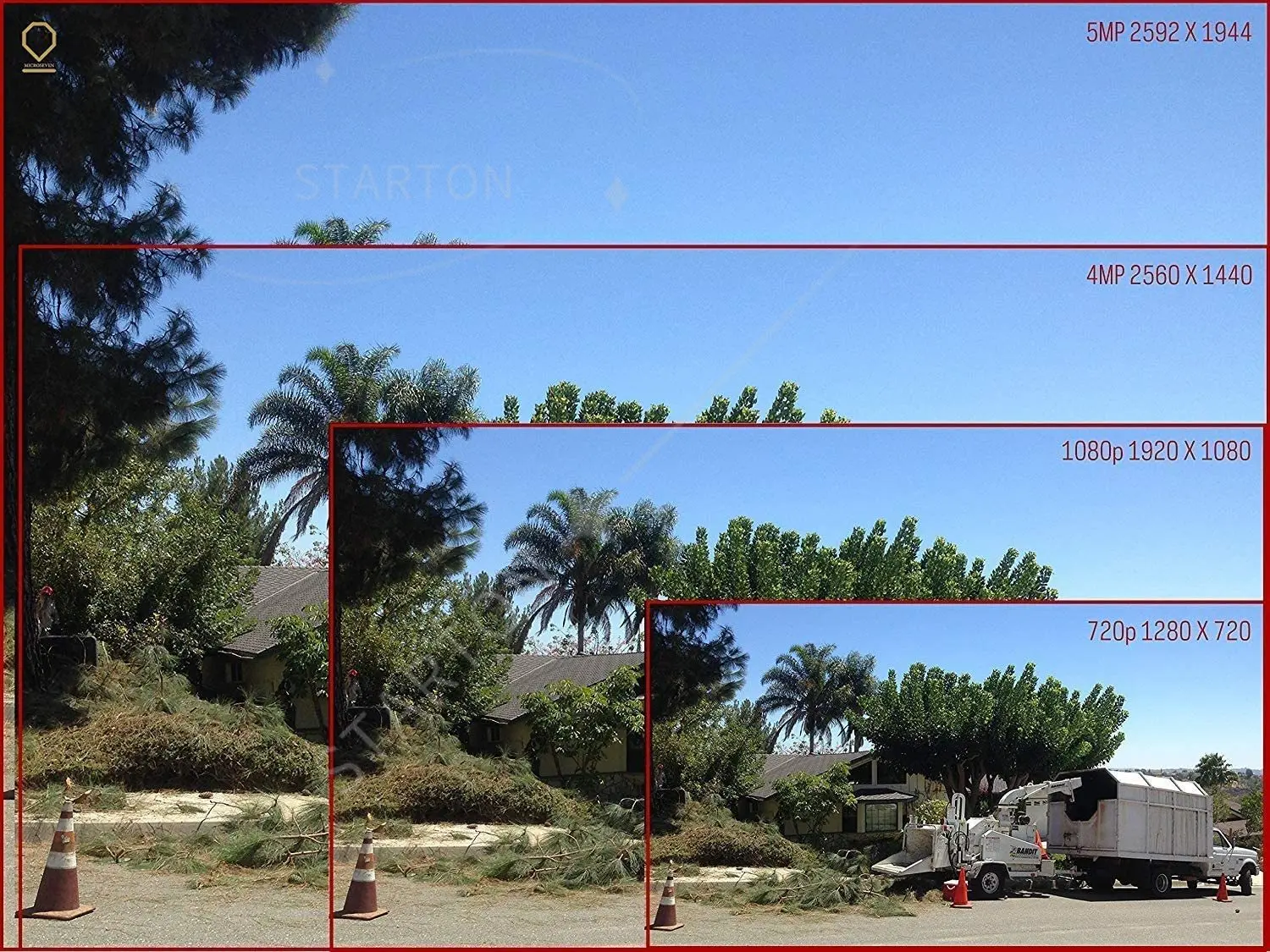

Main stream:3MP 2304*1296@20fps, 2MP 1920*1080@25fps,
Sub-stream:D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288),QVGA(320*240) |
|||
|
Max Resolution
|
3MP 2304*1296
|
|||
|
Video Code Rate
|
Fixed code rate,variable code rate(main stream:160Kbps-4000kbps)
|
|||
|
Video Type
|
Composited stream/video stream
|
|||
|
Audio Standard
|
G.711u/ G.711A 64Kbps
|
|||
|
Network Function
|
||||
|
Network protocol
|
TCP/IP.UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP
|
|||
|
Connection Protocol
|
Slink, Onvif, GB28181 (option)
|
|||
|
Security Mode
|
Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification
|
|||
|
Motion Detection
|
Set detection area, can set multi-level sensitivity
|
|||
|
Occlusion Alarm
|
Support 1 area
|
|||
|
Privacy Mask
|
Support 4 areas
|
|||
|
Schedule Linkage
|
Snapshot, email
|
|||
|
Device Abnormal Inspection
|
Support network broken alarm, IP conflict alarm, illegal visiting alarm
|
|||
|
Character Overlay (OSD)
|
Title, time and date overlay, multi-line, and color of characters optional
|
|||
|
Port
|
||||
|
Network Port
|
RJ45 10M/100M network self-adaptation
|
|||
|
Audio
|
MIC Input/ Output
|
|||
|
General
|
||||
|
Power Supply
|

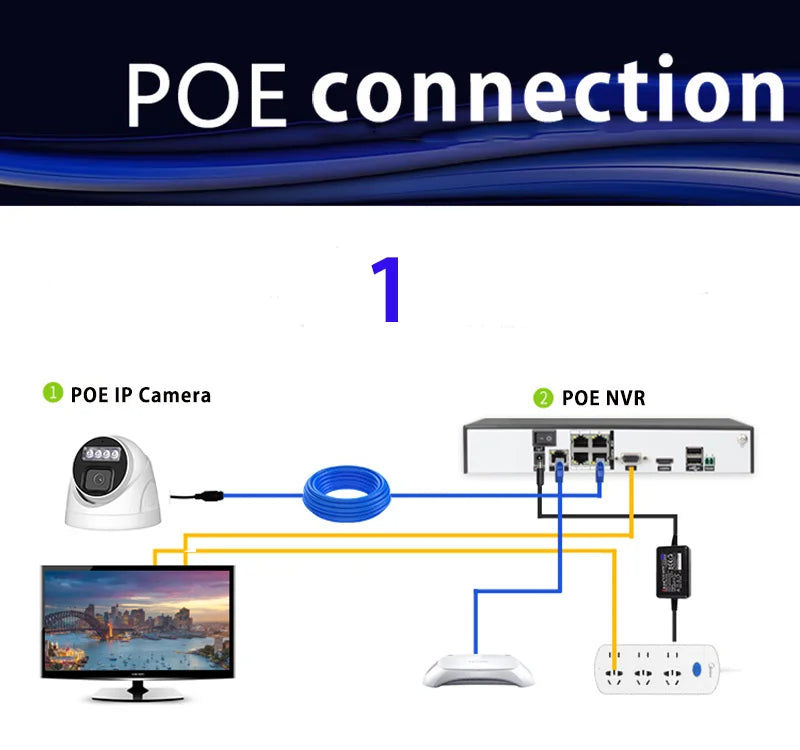

DC12V /PoE (option)
|
|||
|
Working Temperature
|
-10°C ~ 50°C
|
|||
|
Working Humidity
|
0锕獈90锕�
|
|||
